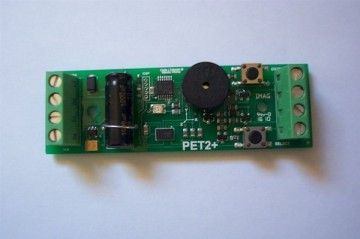

PET2+ Programmable Event Timer

Roll over to magnify and click to enlarge
  • Image 1

Product Reviews

Write Review

This product hasn't received any reviews yet. Be the first to review this product!

$49.95
Brand:
SKU:
MW-PET2

Out of Stock

Product Description

PET2+

Programmable Event Timer

The PET2+ sets a new performance standard with the most advanced and versatile dual event timer functions available in High Power Rocketry today. It's the perfect choice for staging, airstarts, or other specialized timing applications from the simplest to the most complex projects.  The PET2+ goes beyond "dumb timer" capabilities, by providing programmable G-ranges and integration timing so you can discriminate chuff's or cato's from actual "motor ignition" events.  Couple these capabilites with its 3-axis orientation and you get the most "mission adaptable" timer for any HPR flight timing tasks.

Specifications

Functional Features
· 2 completely independent programmable on-board timers
· 3-axis orientation provides the most flexible mounting options for your project
· 3 programmable time bases
· 4 programmable trigger events
· Break-wire input circuit interlocks with any trigger event for fail-safe permissive
· Independently programmable G-range triggering
· Programmable event output pulse duration
· One-shot or Repeat Interval timer operations
· Off-axis and Auto Orientation detection operation
· Interactive menu programming and operation via pushbuttons and LED's...
· All User setpoints are stored in non-volatile EEPROM
· Complete on-board diagnostic capability with POST

Physical and Operational Features
· Small "Mini" footprint (just 1" wide x 3.15" long)... 29mm capable
· Virtually all SMD construction with silicon resin conformal coating
· Full ETE (End-to-End) calibration to null out operational tolerances
· Dedicated "large screw" compression terminals
· Easy "2 hole" mounting with 4-40 hardware

Timer1 and Timer 2 Setpoints
· MEIG trigger level - adjustable from 2 to 5 G's in 1 G increments
· SEIG trigger level - adjustable from 2 to 5 G's in 1 G increments
· Inertial Trigger Event - MEIG / MECO / SEIG / SECO
· Trigger Integration Time - adjustable from 0.1 to 3 seconds in 0.1 sec increments
· Break-wire Function - N/A, Exclusive Trigger, Interlock Trigger
· Timer Interval - adjustable from 1 to 100 (Time Base Dependent)
· Time Base - Fast (0.1 sec) / Slow (1 sec) / Extra Slow (2 sec)
· Timer Operation - One-shot / Repeat

Global Setpoints
· Intertial Trigger Axis - X-axis / Y-axis / Z-axis / Auto Detect
· Off-Axis / Off Calibration - adjustable to well over +/- 20 degrees
· Piezo Tone - High Tone / Low Tone

Diagnostic Features
·Continuity Input Test mode
·MosFET Output Test mode

Made in the USA
