Jolly Logic Chute Release

Roll over to magnify and click to enlarge
  • Image 1
  • Image 2

Product Reviews

Write Review

  1. Beats the heck outta DD

    Posted by Wayne Hubbard on 23rd Apr 2018

    100% success rate with a half dozen tries. Just don't wrap the shrouds.

  2. Hasnt failed yet

    Posted by Tony on 20th Jul 2017

    Ive done at least 5 launches with this, and its worked each time flawlessly. Just make sure you test it after you wrap the chute.

  3. flown twice

    Posted by rfssylvan on 13th Sep 2016

    have flown it twice on mid-power rockets. Worked great at making a DD our without an alt bay. So far it's easy to use and works great!

$139.95
Brand:
SKU:
JL-CR1

Product Description

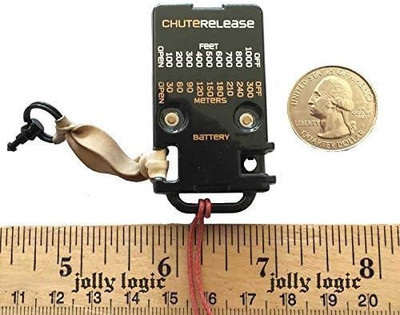

Chute Release is a small electronic device that holds your rocket parachute closed until it drops to an altitude that you choose. This is great for windy days and small fields when normally your rocket would drift too far while descending under parachute.

Simply wrap the elastic around your folded parachute and snap it into the other side of the release, then set the altitude from 100 to 1000 feet (30-300 meters) and you are ready for launch.

Specifications

Size 54 x 31 x 10 mm (2.1 x 1.2 x 0.4 in)
Weight 17.5 g (0.6 oz)
Minimum Altitude For flights higher than 200 feet (60m) above ground level
Release altitudes 100, 200, 300, 400, 500, 600, 700, 800, 1000 feet (30, 60, 90, 120, 150, 180, 210, 240, 300 meters)
Rocket requirements Requires the use of motor ejection, and enough space for Chute Release and parachute, at least BT-60 1.6″ (41.6mm) diameter tube. May work in some 38mm rockets.
Battery Rechargeable Li-Po battery and USB charging cord included.



How Does It Work?

Chute Release uses an elastic band which wraps around the parachute and has a pin which snaps in place on the other side of Chute Release. Chute Release can sense altitude using a highly accurate atmospheric pressure sensor. When the rocket descends to the chosen altitude, an electronic servo releases the pin and lets the parachute open. Chute Release is powered by a lithium-polymer batter that can be recharged from any USB port (cable included).

Chute Release is constructed of incredibly strong polycarbonate plastic to stand up to ejection charges and impacts. The mechanicals are constructed of precisely-machined aircraft aluminum, Teflon coated so that they need no lubrication.

What’s Included

  • Chute Release
  • USB recharging cable
  • Two(2) pins (primary and spare)
  • Ten(10) regular elastic bands 1-3/4 x 1/4″
  • Five(5) large elastic bands 3-1/2 x 3/8″
  • Two(2) tethers, 200 lb strength
  • User Guide
